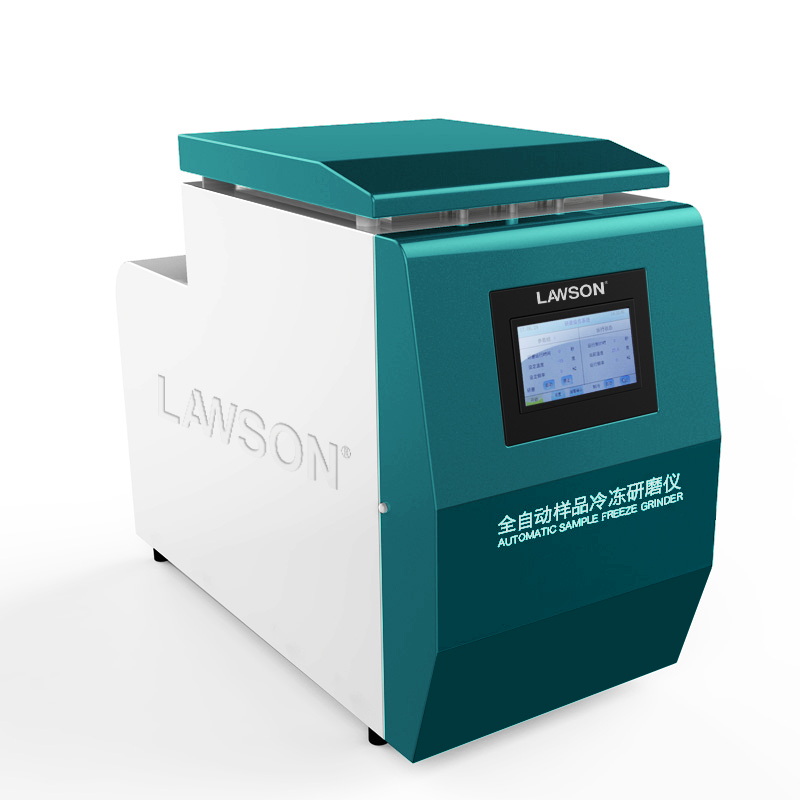

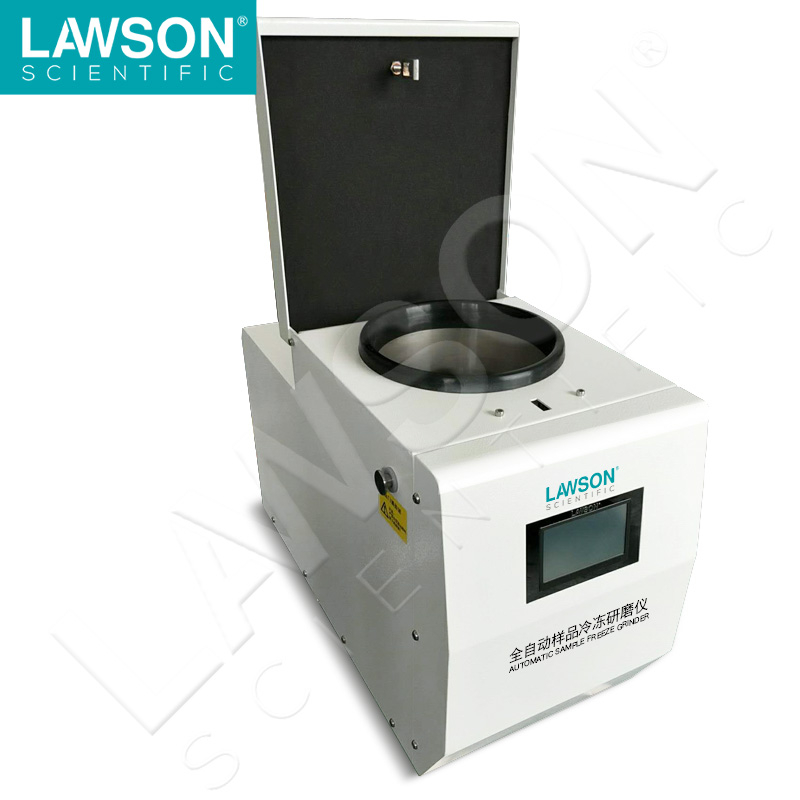

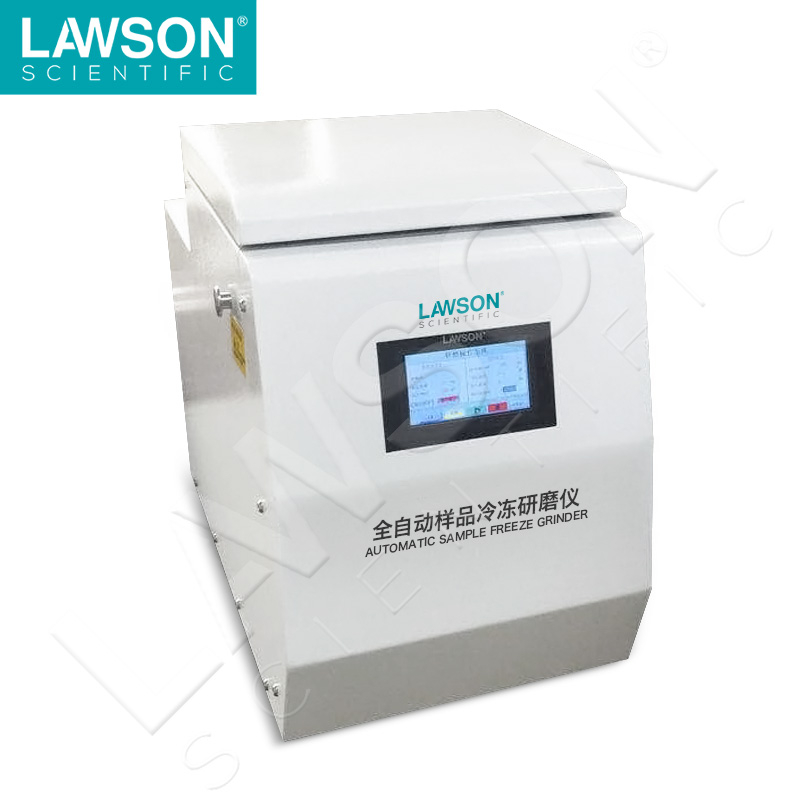

Cryogenic Homogenizer
DHFSTPRP-CL24 Frozen Samples homogenizer is a special, fast, high-efficiency, multi-tube consistent system. It can extract and purify the original DNA, RNA and protein from any source (including soil, plant and animal tissues/organs, bacteria, yeast, fungi, spores, paleontological specimens, etc.).
Contact
Online Consult
- Description
- Specifications
- Paper
- Video
DHFSTPRP-CL24 Frozen Samples homogenizer is a special, fast, high-efficiency, multi-tube consistent system. It can extract and purify the original DNA, RNA and protein from any source (including soil, plant and animal tissues/organs, bacteria, yeast, fungi, spores, paleontological specimens, etc.).
Three key elements of sample processing:
○High-efficiency grinding - processing up to 192 samples in one batch
○Cryogenic grinding - grinding temperature can be customized
○Do not destroy sample components - cryoprotect sample components
Technical Features
·Adjustable cooling
·Fast cooling
·Large grinding flux
·Good grinding effect
·Fully enclosed grinding
·Stable repeatability
·Program can be stored
Features
? Save time and effort
?High speed and convenience
?High-throughput processing of samples
?The experiment has good repeatability
?The sample is in a fully enclosed state, no cross-contamination
?Low noise≤55db: use brushless variable frequency motor
?No need for liquid nitrogen operation, high safety
?No wearing parts design, electromagnetic locking protection
?Stainless steel inner cavity, easy to clean and disinfect
?No regular maintenance required
Grindable samples:
| 1. Plant tissue: | roots, stems, leaves, flowers, fruits, seeds, etc. |
| 2. Animal tissue: | Brain, Heart, Lungs, Stomach, Liver, Thymus, Kidneys, Intestines, Lymph Nodes, Muscles, Bones, etc. |
| 3. Fungal bacteria: | Yeast, Escherichia coli, etc. |
| 4. Food and Drugs: | All kinds of food, pills, etc. |
| 5. Volatile samples: | Coal, oil shale, wax products, etc. |
| 6. Plastics, polymers: | PE, PS, textile, resin, etc. |
·Extract nucleic acid/protein
Cryogenic grinding of samples can effectively inhibit nucleic acid degradation and retain protein activity.
·Analysis of active ingredients
Significant differences often exist between isomers of active pharmaceutical ingredients. Cryogenic grinding prevents molecular degradation due to pressure and heat.
Reduce sample volatilization
Cryogenic grinding can significantly reduce the volatilization of the sample and preserve the content of the sample components more completely
Grinding tough/hard samples
For hard-to-grind samples such as high-toughness plastics, high-strength plastics, and resins, low-temperature grinding can greatly improve the grinding effect and efficiency
DHFSTPRP-CL24 Frozen Samples homogenizer a special vertical up-down integrated vibration mode is adopted, through the high-frequency reciprocating vibration, impact and shearing of grinding beads (zirconia, steel balls, glass beads, ceramic beads). achieve goals quickly. The ground samples are more complete and uniform, the sample repeatability is better, and there is no cross-contamination between samples.
| The number of operations is large, the effect is good | Efficient and fast work can complete the grinding of 2×24, 2×48, 4×96 samples in 1 minute. Save time and effort, and the difference between batches and batches is small. The extracted protein has higher specific activity and longer nucleic acid fragments. |
| No cross contamination | The sample tube is completely closed during the crushing process, and disposable centrifuge tubes and beads can be used. The sample remains intact in the tube to avoid cross-contamination between samples and external contamination. |
| Easy to operate | 1. Built-in program controller, which can set parameters such as grinding time and rotor vibration frequency; 2. Humanized operation interface. |
| good stability | 1. The vertical oscillation method is adopted, and the grinding is more sufficient and the stability is better; 2. During the operation of the instrument, the noise is less than 55dB, which will not interfere with other experiments or instruments. |

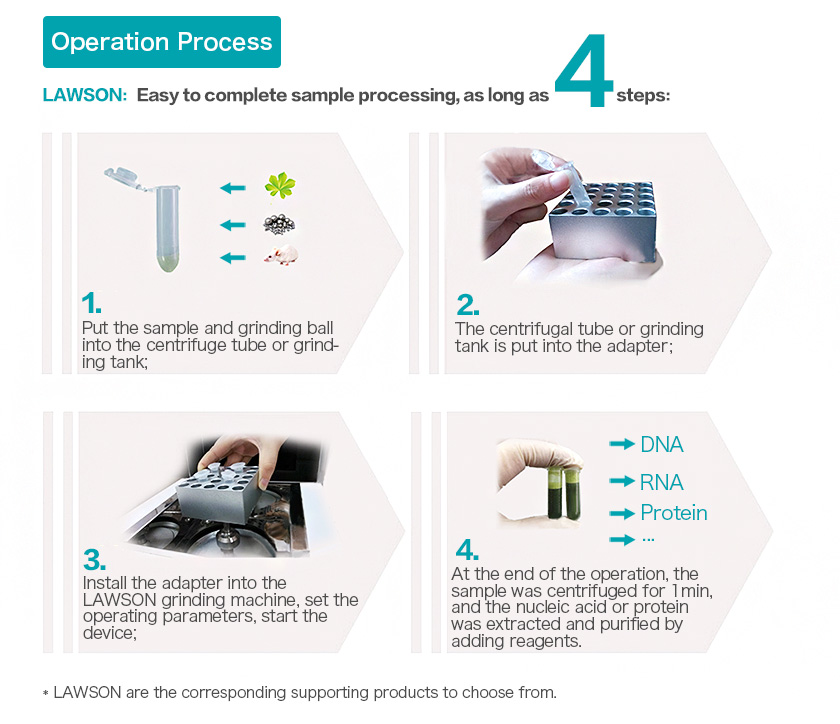

| Convenient low temperature operation | When a cryogenic grinding environment is required, the adapter with the sample can be immersed in liquid nitrogen to cool for 1-2 minutes. After taking it out, move it to the host for quick fixation, and then grinding can begin without re-freezing, saving liquid nitrogen. |
| good repeatability | The same tissue sample was set to the same program to obtain the same grinding effect. The working time is short and the sample temperature does not rise. |
| Applications | Tissue grinding, homogenization, cell disruption, homogenization, material dispersion, preparation, sample mixing, shaking, etc. |
| Throughput | The maximum processing capacity within 15 seconds can process 24 samples at the same time, integrated compressor refrigeration |
| Compatible sample books | 24*(0.2-0.5ML) /24*2ML /12*(5-15)ML /4*25ML /2*50ML, various specifications of grinding tubes can be customized |
| Display method | Touch screen display for convenient and intuitive operation |
| Data Storage | Ten groups of experimental data can be stored. According to different experimental samples, animal heart, spleen, lung, kidney, bone, skin, and hair patterns are set. |
| Pattern loop | According to the set experimental parameters, it can continuously cycle between several set parameters to further reduce the interference of human factors |
| Maximum feed size | No requirement, adjust according to adapter |
| Cooling function | Yes, adjustable from -30 degrees to 37 degrees |
| Temperature control accuracy | + 0.5℃ |
| Open cover operation protection | Electromagnetic lock |
| Final discharge particle size | ~5μm |
| Number of grinding platforms | (Number of acceptable grinding jars)>2 |
| Fastening device | With automatic centering |
| Homogenization speed | 0～70 Hz/sec, working time: 0sec～99min, user can set by himself |
| Grinding Ball Diameter | 0.1～30mm |
| Grinding Ball Material | Alloy steel, chrome steel, zirconia, tungsten carbide, quartz sand |
| Accelerate | Reach max speed in 2 seconds |
| slow down | Reach minimum speed in 2 seconds |
| Noise level | <55db |
| Grinding method | Wet grinding, dry grinding, cryogenic grinding are available |
| Thermostat can be reconfigured | With the ability to upgrade to ultra-low temperature liquid nitrogen refrigeration or air refrigerator refrigeration |
| Adapter Material | PTFE, alloy steel |
| Safety Instructions | Fastening device with automatic centering, safety lock when working, full protection |
| Grinding Kit Materials | Rigid steel, , PTFE (Teflon), zirconia |
| Dimensions | 630*300*480 |
| Weight | 58 Kg |
| host | 1 set |
| adapter | ?2ml 1set |
| Refrigeration adapter | ?2ml 1set or ?1.5ml 1set（2 out of 1） |
| grinding beads | 1. 1000 ?5 imported stainless steel grinding beads or 1000 ?5 imported ceramic grinding beads (choose 1 from 2); 2. 1000 ?3 imported stainless steel grinding beads. |
| Special Grinding Tube | 200 piece |
| Special bead gun | 1 set（Optional） |
| Extracted object: animal tissue-DNA | LW-D-P1（Optional） |
| Extracted object: animal tissue-RNA | LW-D-P2（Optional） |
| Extracted object: animal tissue-protein | LW-D-P3（Optional） |
| Extracted object: plant tissue-DNA | LW-Z-P1（Optional） |
| Extracted object: plant tissue-RNA | LW-Z-P2（Optional） |
| Extracted object: plant tissue-protein | LW-Z-P3（Optional） |
| Extracted object: microorganism-DNA | LW-W-P1（Optional） |
| Extracted object: microorganism-RNA | LW-W-P2（Optional） |
| Extracted object: microorganism-protein | LW-W-P3（Optional） |
1. The matching LW kit can be used to quickly, efficiently, stably, and batch extract DNA/RNA proteins from samples.
2. 1Hz=30 revolutions/second / 1Hz=100RPM
3. Conventional adapters can be refrigerated to give samples a cool environment while working. It can be equipped with an adapter with refrigeration, which can be soaked in liquid nitrogen for more than 30 minutes.
4. The noise emission value for the working environment depends on the type of sample and the settings of the grinder. The parameters in the table are in the no-load state.
5. Small samples typically used for DNA and RNA isolation can be prepared in disposable centrifuge tubes. Adapters made of Teflon material can be used to accommodate 5 or 10 disposable sample tubes for cell disruption. Cells and tissues are rapidly and efficiently disrupted in a very short time in the Multi-Sample Tissue Grinder, thus eliminating the need for additional cryogenic refrigeration.
