Heating Dry Bath
Heating Dry Bath DH200-4 high-temperature dry thermostat controlled by a microcomputer uses high-purity aluminum material as a heat-conducting medium to replace the traditional water bath device. It has the characteristics of convenient use, large temperature control range and high precision. Reaction, DNA amplification and pre-denaturation of electrophoresis, serum coagulation, etc. Using two-level redundant hardware circuit design, with unique intelligent software algorithm, high temperature control accuracy, stable and reliable operation.
Contact
Online Consult
- Description
- Specifications
- Paper
- Video

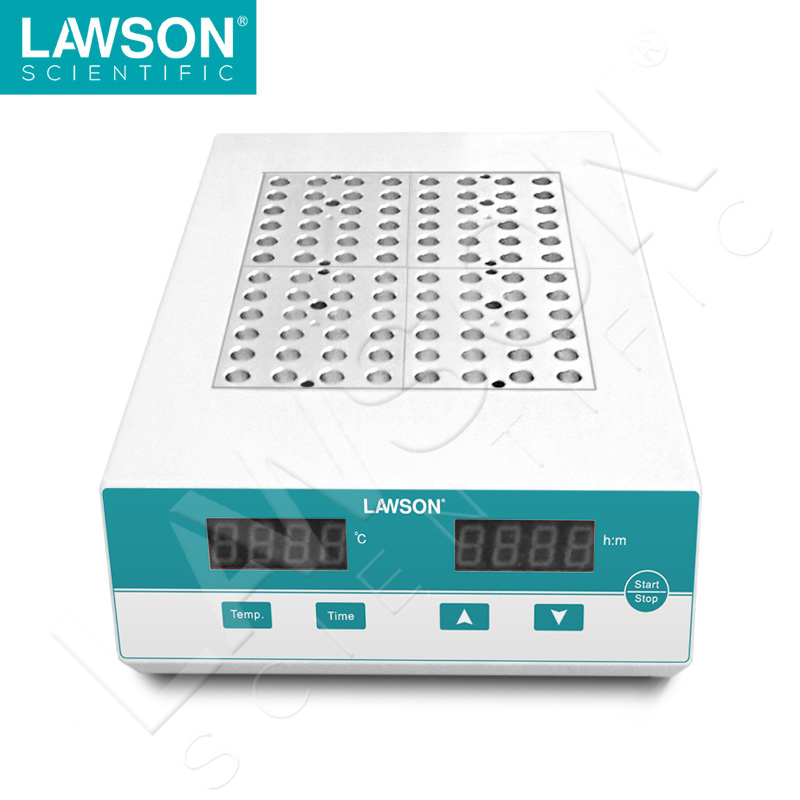

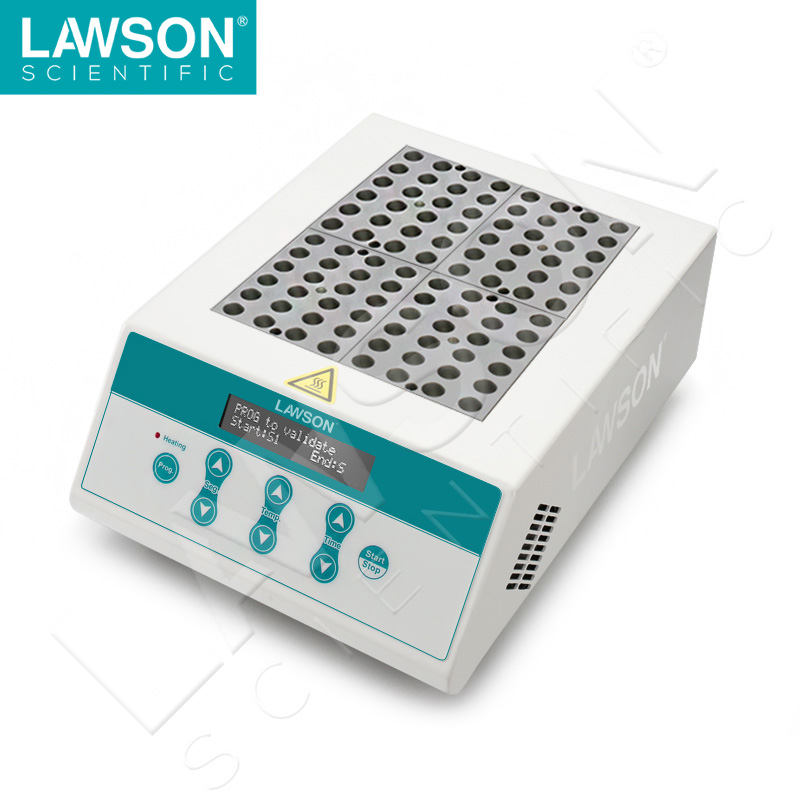

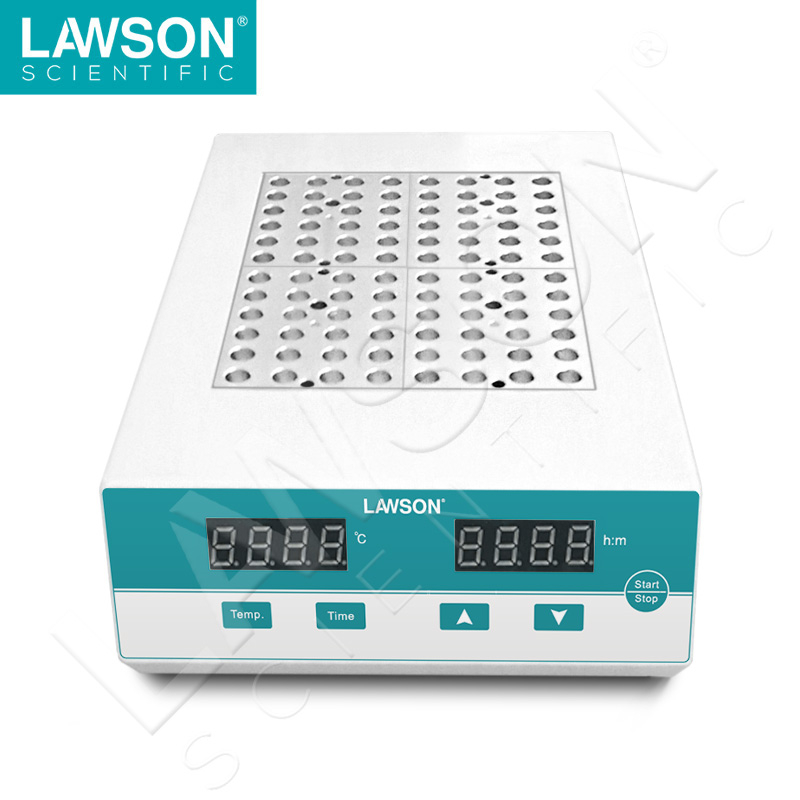

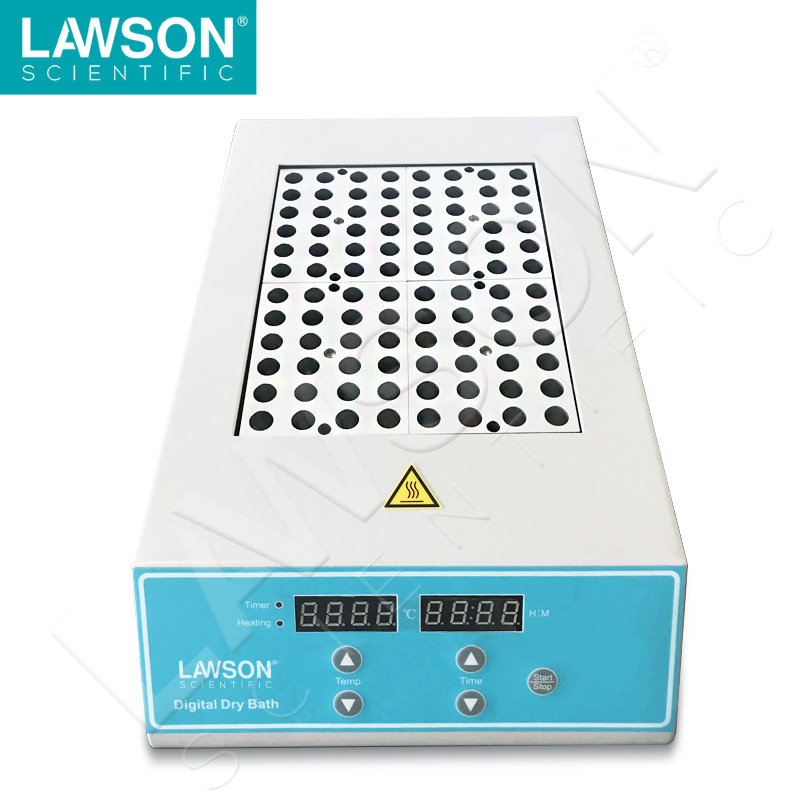

Heating Dry Bath DH200-4 high-temperature dry thermostat controlled by a microcomputer uses high-purity aluminum material as a heat-conducting medium to replace the traditional water bath device. It has the characteristics of convenient use, large temperature control range and high precision. Reaction, DNA amplification and pre-denaturation of electrophoresis, serum coagulation, etc. Using two-level redundant hardware circuit design, with unique intelligent software algorithm, high temperature control accuracy, stable and reliable operation.
◆ Instant temperature display, time decrement display;
◆ Automatic fault detection and buzzer alarm function;
◆ With temperature deviation calibration function;
◆ Convenient module replacement for easy cleaning and disinfection;
◆ Built-in over-temperature protection device;
◆ Two-level redundant hardware circuit design, more reliable use;
| Model | DH200-4 |
| Temperature control range | Room temperature+5℃~120℃ |
| Temperature control accuracy | ±0.5℃(@40℃); ±1℃(@120℃) |
| Heating time | ≤20min (25℃～120℃) |
| temperature uniformity | ±0.5℃ |
| Display accuracy | 0.1℃ |
| Number of modules | 2~4 |
| Timing range | 1-99h59min/∞ |
| voltage | AC 220V |
| Maximum power | 600W |
| Product size | 360*220*100mm |
| Product weight | 8.0kg |

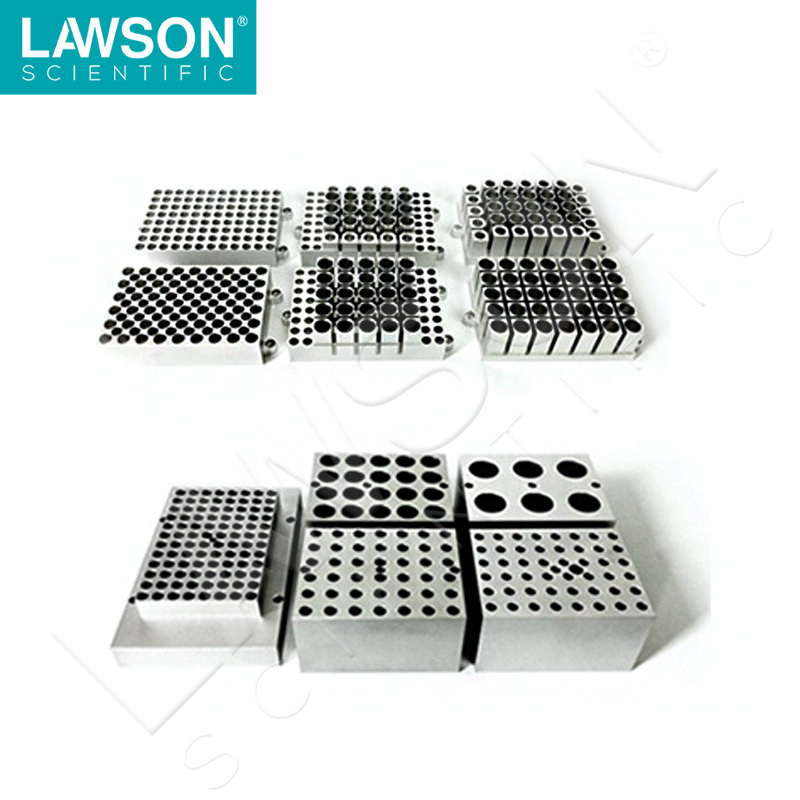

Module model selection | |||
| Model | Tube diameter | Number of test tubes | Module size |
| DT01 | 6mm | 42 | 95.5×76.5×50 |
| DT02 | 7mm | 42 | 95.5×76.5×50 |
| DT03 | 10mm | 20 | 95.5×76.5×50 |
| DT04 | 12mm | 20 | 95.5×76.5×50 |
| DT05 | 13mm | 20 | 95.5×76.5×50 |
| DT06 | 15mm | 12 | 95.5×76.5×50 |
| DT07 | 16mm | 12 | 95.5×76.5×50 |
| DT08 | 19mm | 12 | 95.5×76.5×50 |
| DT09 | 20mm | 6 | 95.5×76.5×50 |
| DT10 | 26mm | 6 | 95.5×76.5×50 |
| DT11 | 28mm | 4 | 95.5×76.5×50 |
| DT12 | 40mm | 2 | 95.5×76.5×50 |
| DT13 | 0.5ml | 40 | 95.5×76.5×50 |
| DT14 | 1.5ml | 24 | 95.5×76.5×50 |
| DT15 | 2.0ml | 24 | 95.5×76.5×50 |
| DT16 | 0.2ml | 48 | 95.5×76.5×50 |
| DT17 | 0.2ml | 96 | 78×114×26 |
| DT18 | flat | 96-well microtiter plate (plate) | 81×123×19 |
| DT19 | Can be customized | Can be customized | Can be customized |
| host | 1 set |
| module | 2-4 piece |
| power cable | 1 root |
| Special screwdriver (for removing the module) | 1 set |
| user's manual | 1 part |
| certificate | 1 part |
| Warranty Card | 1 part |
