Vortex Mixer
Multi Tube Vortexer DHM-200,also known as:Tube Multi Vortexers,Adopt DC brushless motor and microcomputer control technology. The unique button-type operation mode is simple and easy to use. By changing different test tube fixing sponges, it can mix and cultivate various commonly used test tubes, and can mix and process up to 50 samples at a time. Suitable for fields such as biotechnology, microbiology and medical analysis.
Contact
Online Consult
- Description
- Specifications
- Paper
- Video

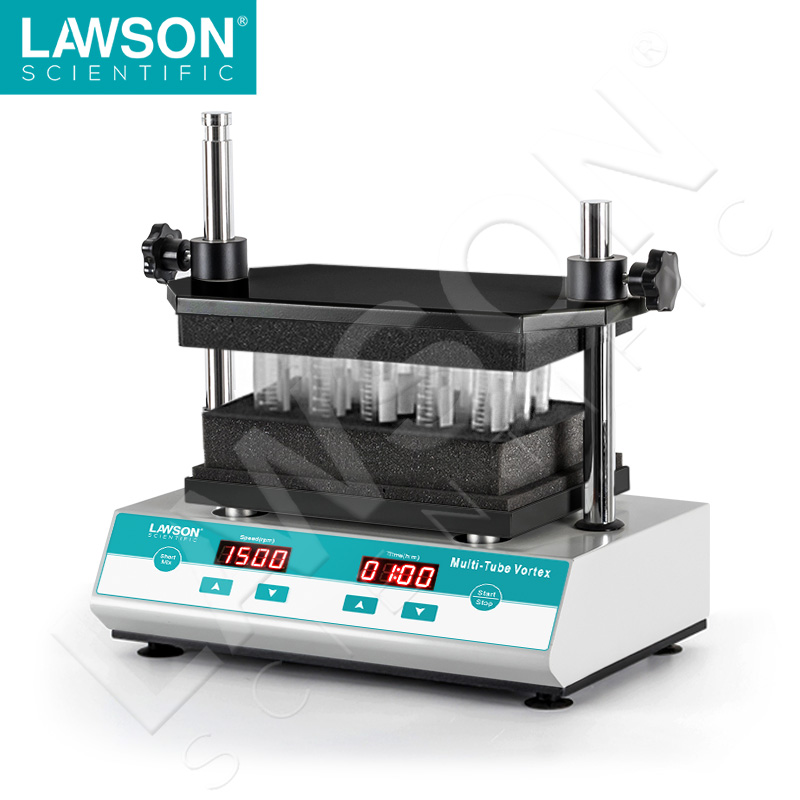

Multi Tube Vortexer DHM-200,also known as:Tube Multi Vortexers,Adopt DC brushless motor and microcomputer control technology. The unique button-type operation mode is simple and easy to use. By changing different test tube fixing sponges, it can mix and cultivate various commonly used test tubes, and can mix and process up to 50 samples at a time. Suitable for fields such as biotechnology, microbiology and medical analysis.
◆ One-touch key operation mode, easy to use;
◆ The timing time can be set arbitrarily within the range of 1min ~ 99h59min, and a prompt sound will be automatically issued after the operation is completed;

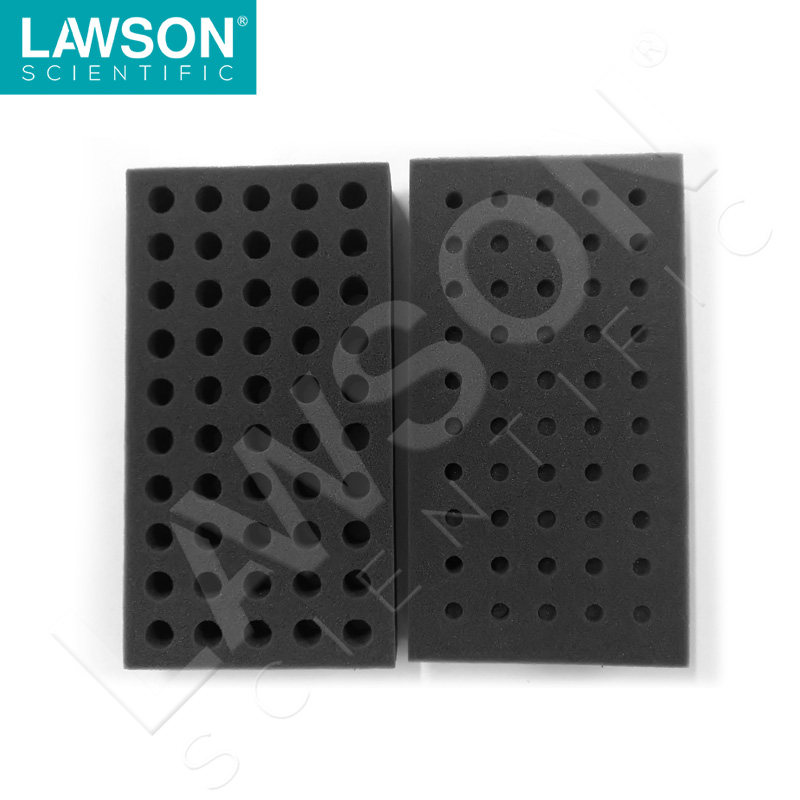

◆ A variety of sponge test tube racks are available for a wide range of uses;
◆ Soft start, uniform acceleration, effectively avoid sample splashing;
◆ Driven by brushless DC motor, accurate speed, long life and maintenance-free;
◆ It can process up to 50 test samples at a time, making the experiment efficient and fast;

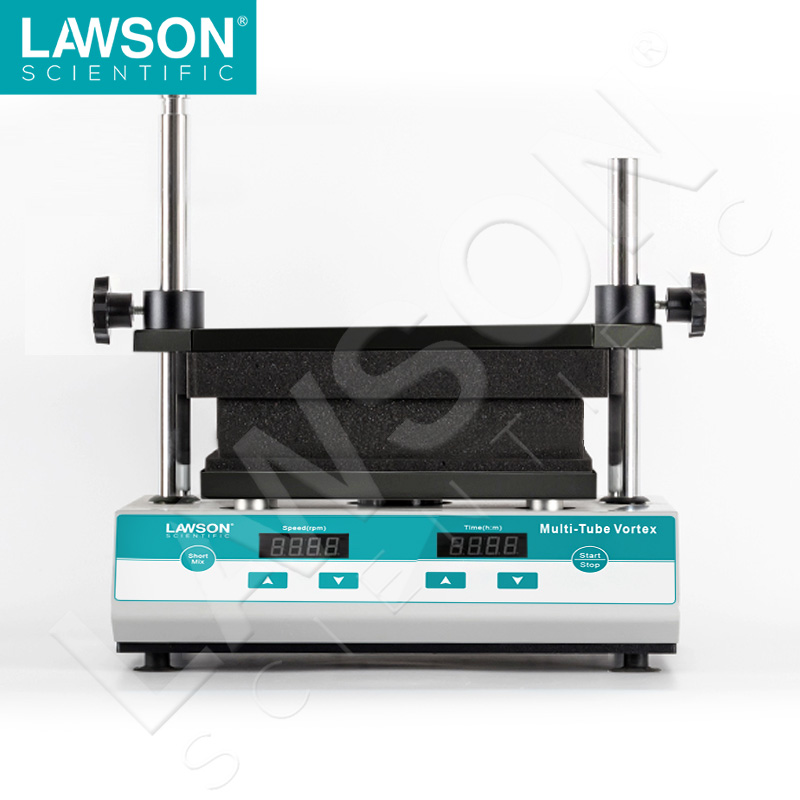

◆ Simple operation panel, precise microprocessor control, LED real-time display of speed and time;
◆ Humanized program design, built-in jog and timing operation modes;
|
Model |
DHM-200 |
| range of rotation | 500~2500rpm |
| Rotation diameter (amplitude) | 4mm horizontal rotation |
| input power | 70W |
| Dimensions | 410x276x432mm (L*W*H) |
| time setting | 1min ~ 99h59min |
| maximum load | 4.5kg |
| Input voltage | AC100-240V 50-60Hz |
| Heavy Amount | 20kg |
|

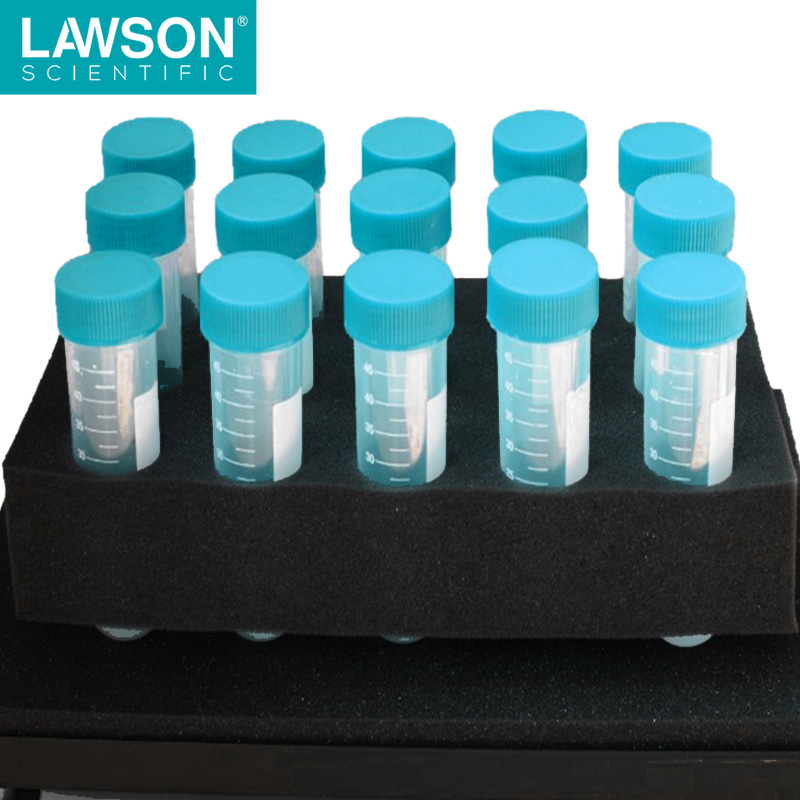

Optional special test tube model: |
||
|
Model |
Specifications |
Applicable test tube diameter |
| DHM-200-T10 | 50x￠10mm | ￠9~￠10mm |
| DHM-200-T12 | 50x￠12mm | ￠11~￠13mm |
| DHM-200-T15 | 50x￠15mm | ￠14~￠17mm |
| DHM-200-T20 | 50x￠20mm | ￠18~￠21mm |
| DHM-200-T25 | 15x￠25mm | ￠24~￠27mm |
| DHM-200-T29 | 15x￠29mm | ￠28~￠32mm |
| Other custom specifications | Can be customized | Can be customized |
| host | 1 set |
| Special test tube rack | 1 set |
| power cable | 1 root |
| user's manual | 1 part |
| certificate | 1 part |
| Warranty Card | 1 part |
