Sonics ultrasonic processor

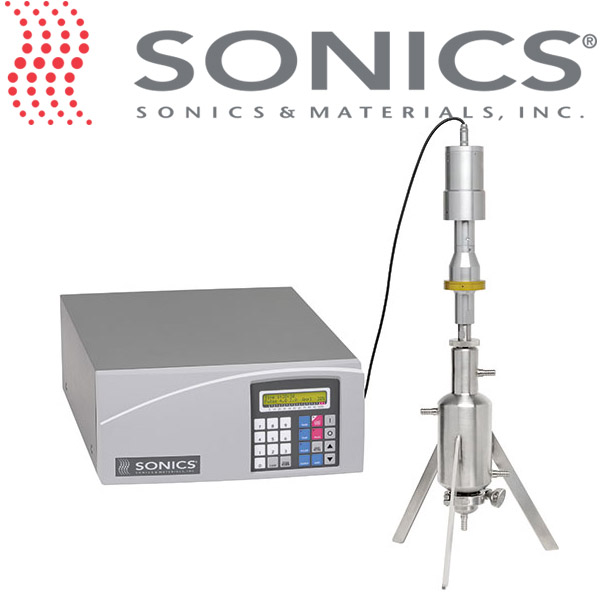

VCX 1500HV Industrial Ultra Sonicator,1500W ultrasonic processor and large capacity continuous flow cell with typical production rate of 100 liters/hour - variables are viscosity and degree of processing required. Mainly used for industrial mixing, including large-scale processing of nanomaterials; industrial processing, including emulsification, degassing and large-scale dispersion. The flow cell is easily disassembled for inspection and cleaning, and is water jacketed to allow samples to be cooled/heated as they are processed.
Contact
Online Consult
- Description
- Specifications
- Paper
- Video
VCX 1500HV Industrial Ultra Sonicator,1500W ultrasonic processor and large capacity continuous flow cell with typical production rate of 100 liters/hour - variables are viscosity and degree of processing required. Mainly used for industrial mixing, including large-scale processing of nanomaterials; industrial processing, including emulsification, degassing and large-scale dispersion. The flow cell is easily disassembled for inspection and cleaning, and is water jacketed to allow samples to be cooled/heated as they are processed.
◆Based on flow over 20 liters
◆Programmable
◆Variable power output
◆10 hour timer
◆Pulse mode
◆Wattage and Energy display
◆Temperature monitoring
◆Energy setpoint
| Model | VCX 1500HV |
| Frequency | 20KHz |
| Power | 1500W |
| Standard horn | Φ25mm |
| Standard horn throughput | 100L per hour |
| Standard horn length | 230mm |
| Overall size of the horn | 178 x 380 x 463.5 mm |
| Amplifier material | Titanium alloy Ti-6Al-4V |
| Optional horn | Φ25mm |
| Amplifier weight | 1600g |
| Converter cable length | 3m |
| Crushing capacity | 100L per hour |
| Duty Cycle | 1-99% |
| Power Adjustment Range | Continuously adjustable (15-1500w) |
| Gap Time | 0.1-99.9s |
| Temperature protection setting | Yes |
| Indoor liquid volume | 500ml |
| Operating pressure | Up to 50ps |
| Power | 220/110V 50Hz/60Hz single phase 15A |
| Net weight | 9.5kg |
| Host + transducer weight | 10.68kg |
| Alternative Solids Probe for Large Volume Continuous Flow Cells | 630-0617 |
| Large Capacity Continuous Flow Cell (H x W x D) 36" x 16" x 16" (914 x 406 x 406 mm) | 630-0474* |
| instruction manual | Sound attenuator box accommodates booster and 1" (25 mm) probe part numbers 630-0209, 630-0210 and 630-0310, does not accommodate 1" (25 mm) solid 181/2" (470 mm) long probe length to 630-0619, 630-0621 or 630-0631. |
| VCX 1500 Converter Clip | 830-00120 |
| Optional temperature probe | 830-00060 |
| instruction manual | *Up to 20 liters when using 1" (25 mm) solid 18 1/2" (470 mm) long probe part number 630-0621 and customer supplied mechanical agitator. **The shock box will hold the VCX 1500 converter, booster and 1" (25 mm) probe part numbers 630-0209, 630-0210 and 630-0310, will not hold the 1" (25 mm) solid 18 1/2 "(470 mm) Long Probe Product Model 630-0621 due to its length. |
