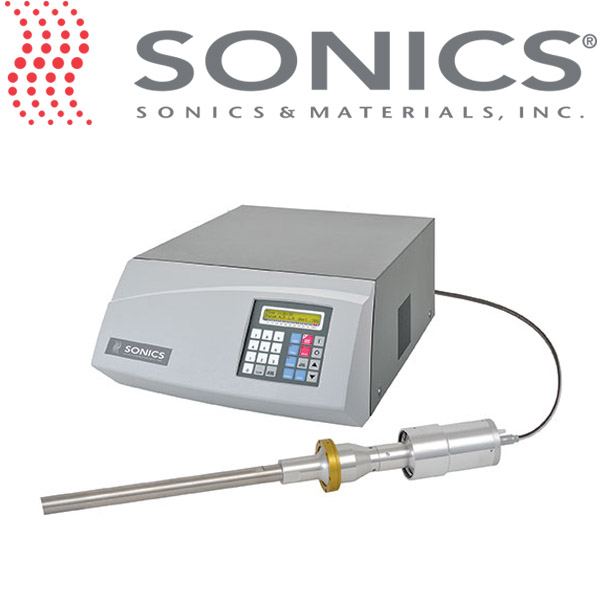

SONICS ultrasonic Homogenization VCX 2500:Air-cooled converter, capable of batch processing up to 50 liters* Typical applications include industrial mixing (including large-scale processing of nanomaterials) and industrial processing (including emulsification, degassing and large-scale dispersion systems).
Contact
Online Consult
- Description
- Specifications
- Paper
- Video
SONICS ultrasonic Homogenization VCX 2500:Air-cooled converter, capable of batch processing up to 50 liters* Typical applications include industrial mixing (including large-scale processing of nanomaterials) and industrial processing (including emulsification, degassing and large-scale dispersion systems).
◆batches up to 50 liters

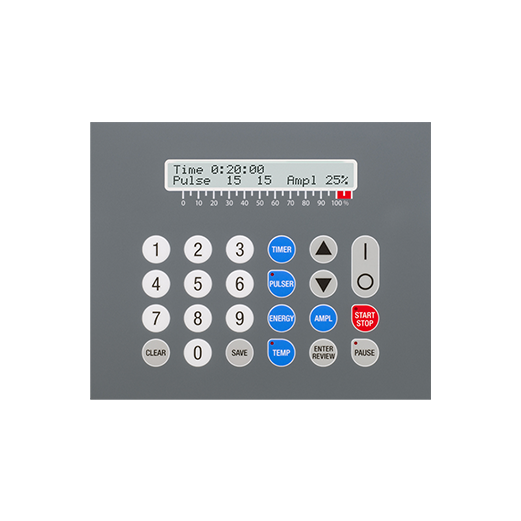

◆Programmable
◆Variable power output
◆10 hour timer
◆Pulse mode
◆Wattage and Energy display
◆Temperature monitoring
◆Energy setpoint
| Model | VCX 2500 |
| Frequency | 20KHz |
| Power | 2500W |
| Standard horn | Φ38mm |
| Standard horn throughput | More than 50L each time |
| Standard horn length | 370mm |
| Overall size of the horn | 240 x 445 x 711 mm |
| Amplifier material | Titanium alloy Ti-6Al-4V |
| Optional horn | Φ25mm,Φ38mm |
| Amplifier weight | 816g |
| Converter cable length | 3m |
| Crushing capacity | More than 50L each time |
| Duty Cycle | 1-99% |
| Power Adjustment Range | Continuously adjustable (15-2500w) |
| Gap Time | 0.1-99.9s |
| Temperature protection setting | Yes |
| Working Mode | Gap/Continuous |
| Power | 220/110V 50Hz/60Hz single phase 30A |
| Host + transducer weight | 21.8kg |
| VCX 2500 (H x W x D) 36" x 16" x 16" (914 x 406 x 406 mm) | 630-0474** |
| Support frame | 830-00109 |
| VCX 2500 Converter Clip | 830-00120 |
| Optional temperature probe | 830-00060 |
| instruction manual | *Up to 50 liters when using probe part number 630-0631 and customer supplied mechanical agitator. |
| Design page |  |

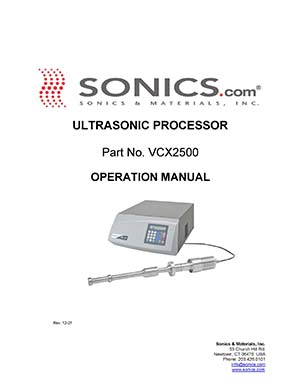

| Manual |  |

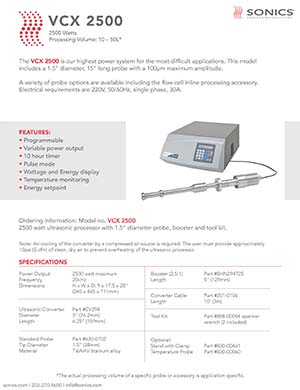

| sonics_vibracell_catalog |  |
